Posalux Diamond Tools

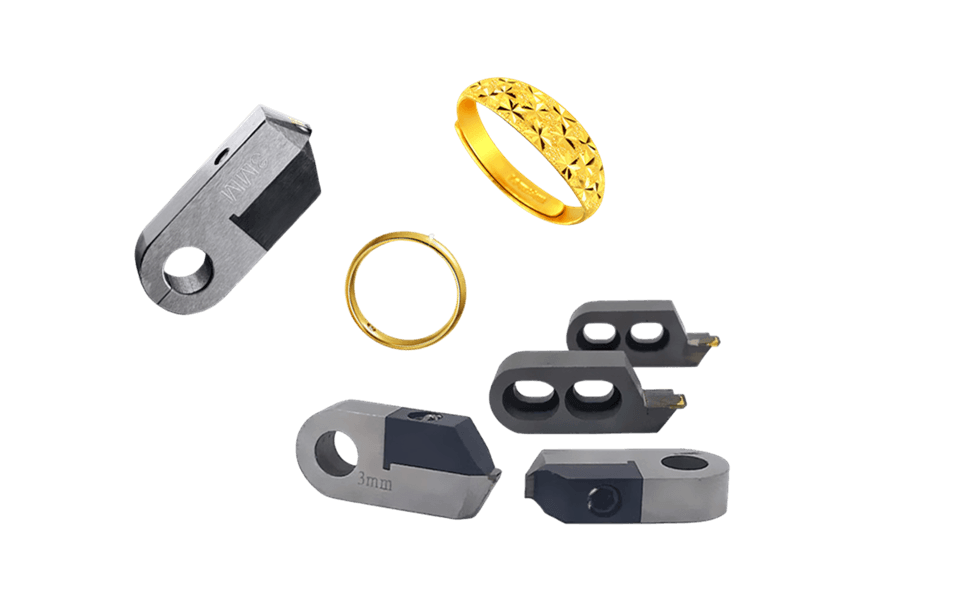

ZY SUPERHARD Posalux Diamond Tools .png

Our Posalux diamond tools can be used for mirror polishing bracelets, chains, etc. Used in the jewelry manufacturing and engineering cutting industries.

The excellent quality of the materials used in the manufacture of Posalux diamond tools further ensures high durability and effectiveness in their respective applications. Posalux custom diamond tools can be ordered upon request. The diamonds used in Posalux diamond tools come in different sizes, shapes, and degrees to suit different applications.


For PCD diamond tools,PCD Diamond Tools are often used to make the mirror surface on silver jewelry. And reshape the ring's whole surface such as making bangle flat surface into a convex shape.

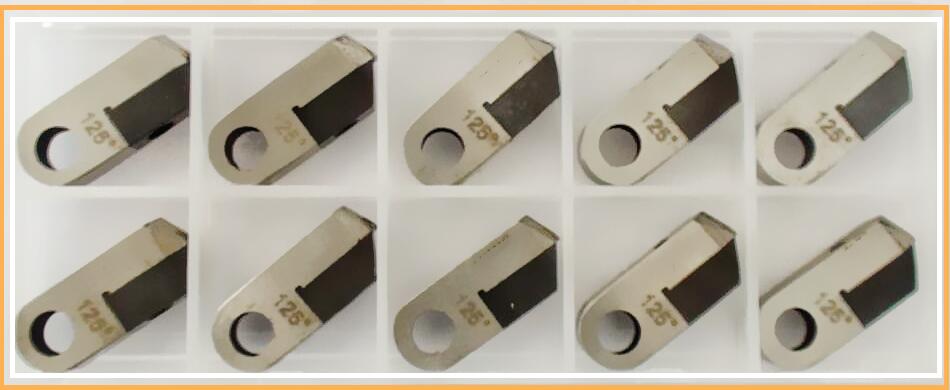

125 degree  Posalux Diamond Tools .jpg

PCD diamond can be made with a wider diamond shape at a much cheaper price than CVD, MCD, Natural Diamond, etc. And a much cheaper price.

Most Common Posalux diamond(PCD/CVD/MCD/ND) tools are used for mirror bright cut finish on gold, silver, aluminum, non-ferrous material, and others.

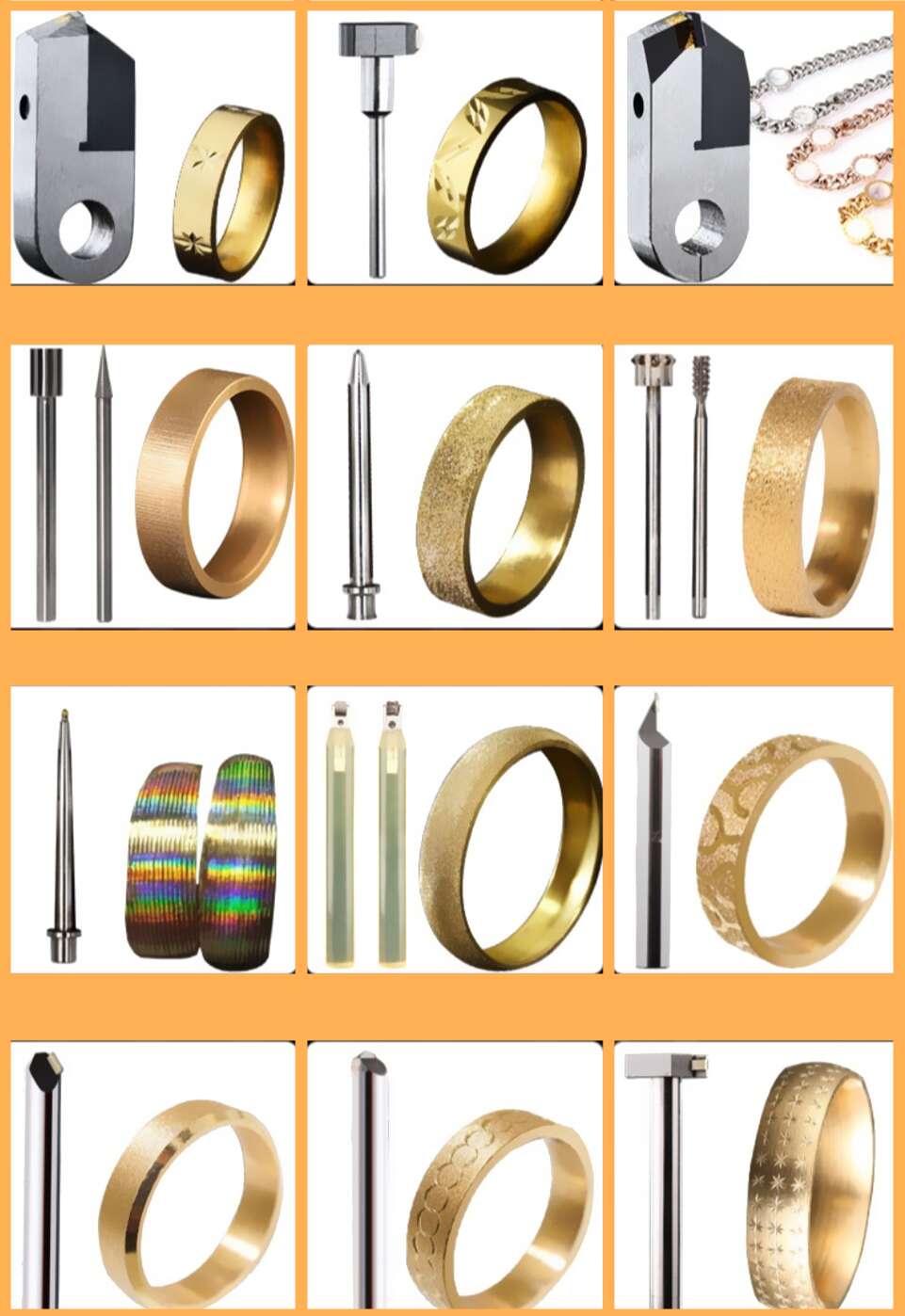

It has a V-shape, Flat 180°,Concave, Convex, Flat Lining, Concave Lining, Convex Lining, Left Bevel, Right Bevel, and Diamond Shapes. It can be used to make bright cut faceting on the bangle, ring, balls, chains, pendent by mounted in a Diamond Faceting Machine, CNC Machine, Lathe (Turning) Machine, etc

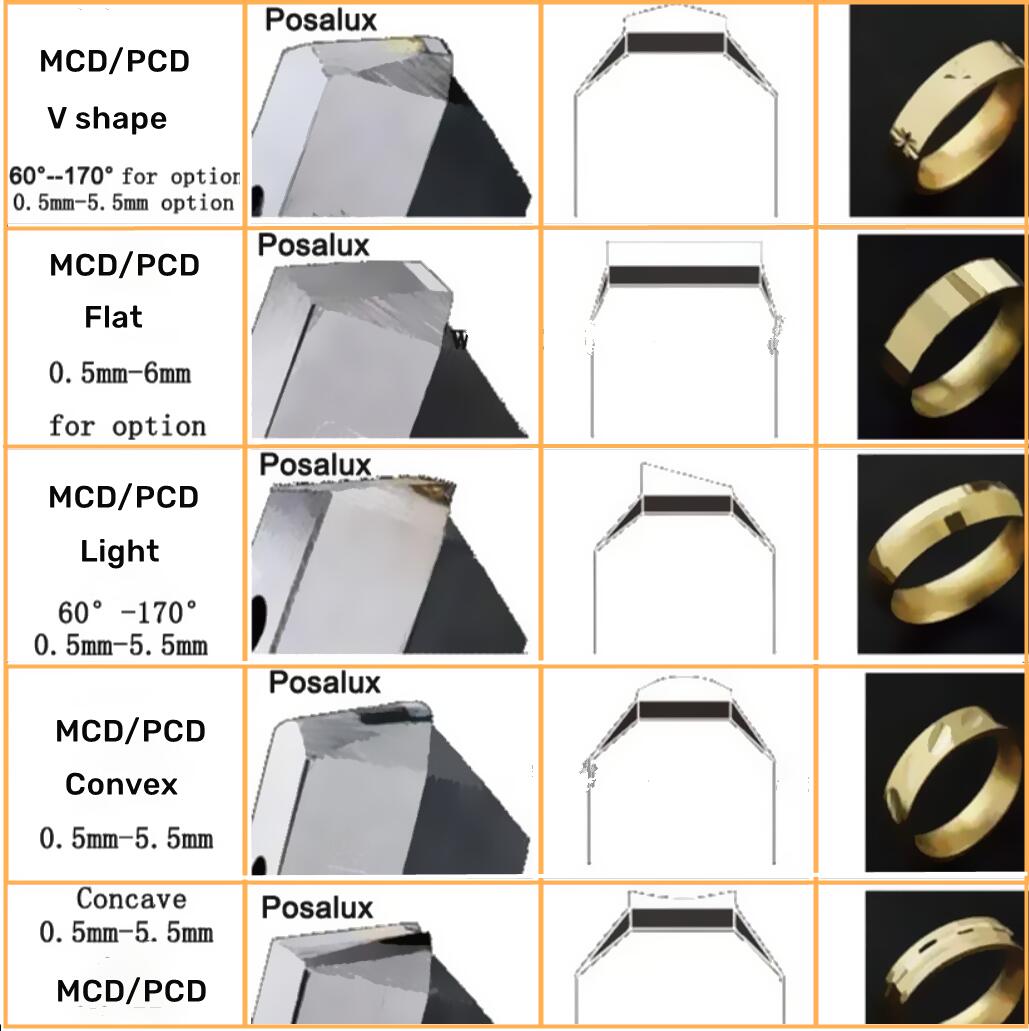

Shape Introduction as follows,

PCD MCD Diamond Posalux Tools for jewellery.jpg

V-Shape

90°, 100°, 110°, 120°, 130°, 135°, 140°, 145°, 150°, 155°, 160°, 165°, 170°, 175° with 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm etc. diamond width.

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.

Flat 180°Shape

180° with 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm etc. diamond width.

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.

Convex

0.5mm, 0.8mm, 1mm, 2mm, 3mm etc. diamond width.

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.

Concave

0.5mm, 0.8mm, 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm etc. diamond width.

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.

Concave Lining

2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm etc. diamond width. with 2 teeth, 3 teeth, 5 teeth, 7 teeth, 9 teeth, 11 teeth。

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.

 Bevel Tools - Left / Right

Bevel angle with 30°, 45°, 60°, etc., for chain diamond cutting.

Diamond Material: CVD, MCD, PCD, Natural Diamond.

Tool Body: Mini, 26mm, 30mm etc.


In addition, unmatched quality and unmatched performance have attracted many national and international customers to choose our Posalux diamond tools.

Note : We also provide customized tools as per customers' requirements.

Kinds of PCD MCD Diamond Posalux Tools.jpg
