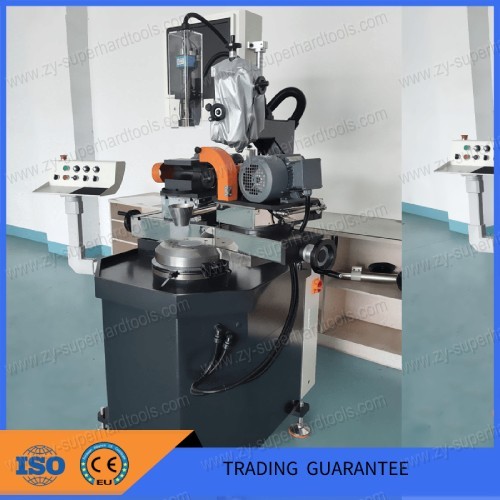

ZY-X3 Grinding Wheel Dressing Machine
ZY-X3 Grinding Wheel Dressing Machine / Grinding Wheel Dresser / Grinding Wheel Trimmer / Grinding Wheel Finisher / Radius Grinding Wheel Dresser
Suit for wheel packs of Walter, Anca, Rollomatic, Reinecker, Saacke, Schneeberger grinding machine
1. Introduction of ZY-X3 Grinding Wheel Dresser
The machine itself can provide simple and efficient dressing for a grinding wheel group consisting of diamond grinding wheels,CBN grinding wheels and multiple grinding wheels, dressing planes, angles, arcs and molded grinding wheels. The machine is simple to operate, with high precision and has the following characteristics:
* The use of precision linear rail and ballwire rod produced in Taiwan, China, and the addition of several light-meter rulers, so that when the modified grinding wheel is corrected, positioning accuracy, width size and arc size can be adjusted and measured at any time.
* The rotary shaft uses high-precision tapered roller bearings made in Japan to achieve rotation accuracy and smoothness.
* The speed of the dressing grinding wheel, the left and right swing speed, the size of the swing stroke, and the position of the grinding wheel can be adjusted.
* CCD photography unit with15to120 x magnification and17-inchLCD display, The arc, angle and size of the grinding wheel can be measured and tested at work.
* The CCD and optical dimension units provide easy-to-use settings and measuring the width, position and inspection of the grinding wheel during or after dressing. The measurement accuracy can be up to0.005x0.01mm.
2.Key Tech Parameters
Components | |
Diamond Grinding Wheel Spindle | HSK50A,BT40, SK40,HSK-F50, HSKA32 (up to customer) |
X,Y-axis grille resolution (optional) | 0.001mm |
Diamond grinding wheel diameter | Φ80mm-Φ420mm (max) |
Grinding wheel max thickness | 20mm |
Grinding wheel aperture | Φ31.75mm |
Grinding wheel travel around | 120mm |
Front and rear travel of the grinding wheel | 120mm |
Grinding wheel arc | Φ0~15 mm |
Accuracy | 0.005~0.01mm |
Sic Dressing Wheel | |
Specification of SIC Wheel | Φ180*10*Φ31.75 mm |
Dressing grinding wheel speed | 1400-2800 rpm (Constant Speed) |
Power | |
Total power | 1.5KW |
3.Key List : LCD / CCD Optical Measuring Head / Control Panel / In-knife handle / X axis,Y axis / Magnetic grid / A-axis / A-axis locking wheel / Feed axisX1 / Back and forth Feed shaft Y1
/ Trimmed grinding wheel motor

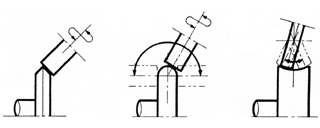

4.The machine can also be repaired as follows a number of shapes of grinding wheels, the grinding method is simple and convenient:
5.Our ZY-X3 and ZY-X5 dressing machine are suit for wheel packs of Walter, Anca, Rollomatic, Reinecker, Saacke,Schneeberger grinding machine and other tool grinders.
6.Any details to know,please free to contact us!
