Indexable inserts

CNC PCD INSERTS

CNC PCD INSERTS

EMAIL

CNC <a href=https://www.zy-superhardtools.com/new/PCD-Turning-Milling-And-Drilling-Inserts.html target='_blank'>pcd insert</a>s introduction.png

PCD insert is mainly used for processing various non-metallic and non-ferrous materials, such as aluminum, aluminum alloy, copper, copper alloy, tungsten carbide, aluminum-based silicon carbide, reinforced plastics, graphite, composite materials, carbon fiber, glass fiber, composite materials, ceramics and so on.

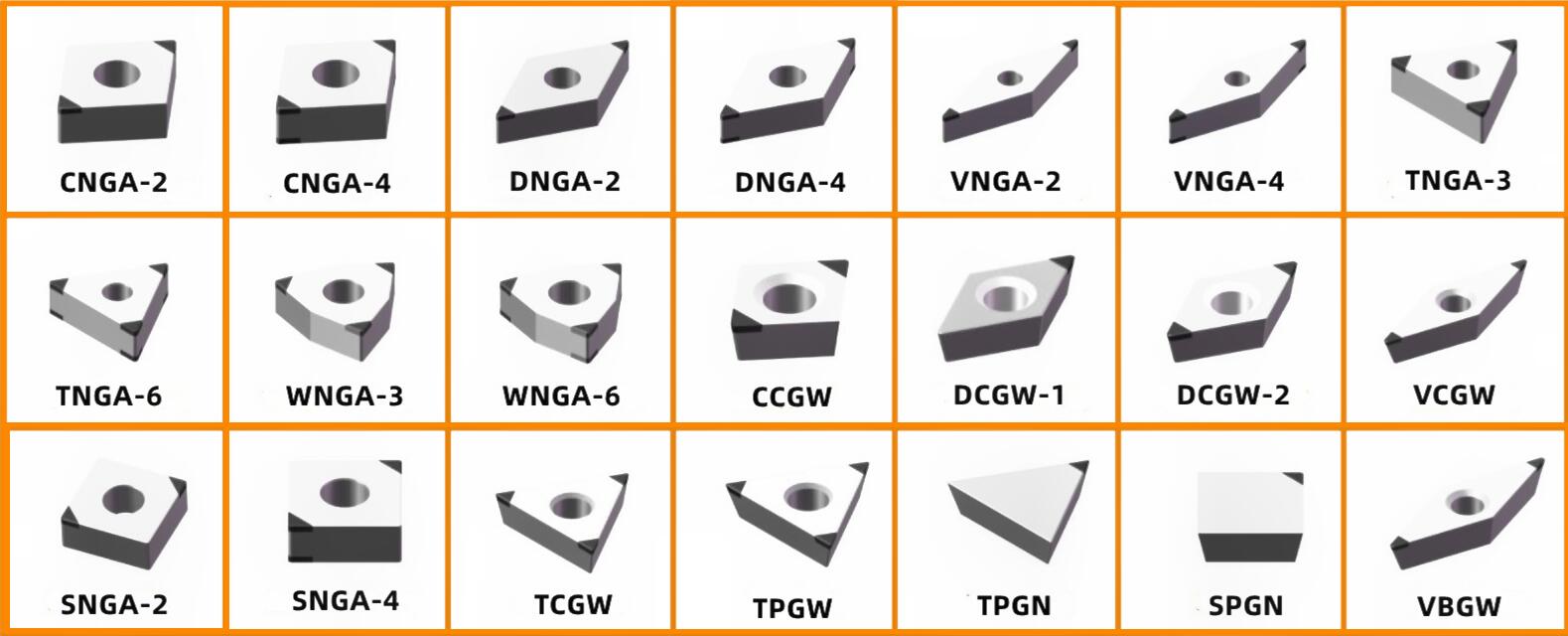

CNC PCD INSERTS Model

pcd inserts model.png

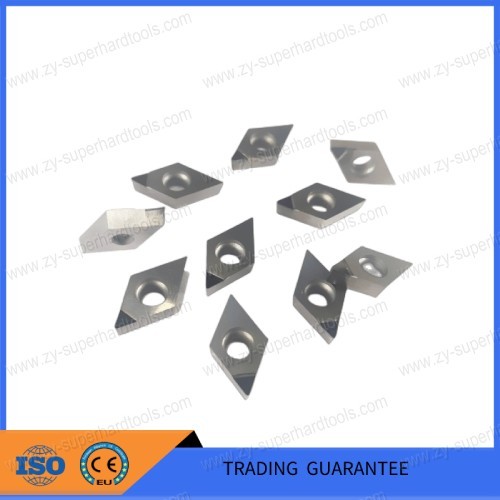

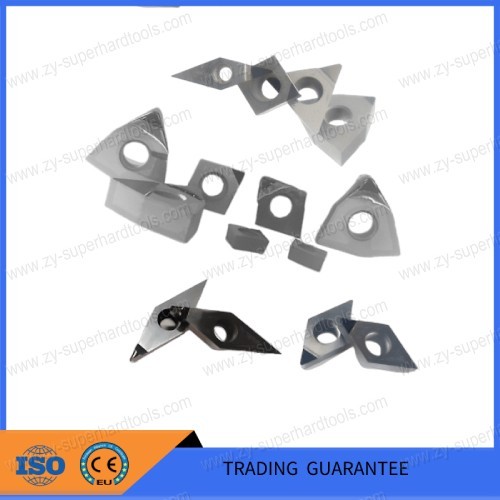

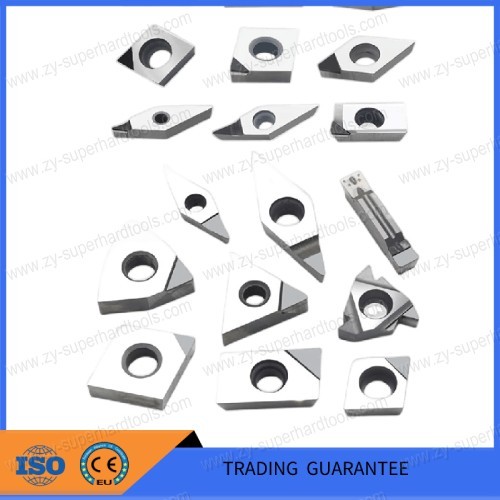

different model pcd inserts.jpg

Conventional model:

VCGT110304/08,VCGT160404/8/12/16/20/30;

TCGT060104,TCGT110304,TCGT16T304/08;

DCGT070204,DCGT11T304/08;

CCGT060202/04/08,CCGT120404,CCGT09T04/08;

APKT1003,APKT160408;

DNGA150604/08;CNGA120404/08;

TNGA160404/08;TPKN1603/2204;

SPKN1203;SCGT09T404/08;SCGT12;RCGT10T3......

cnc pcd inserts advantages.png

1. High sharpness and high-speed cutting can be realized

2. High wear resistance, high machining precision

3. Good thermal conductivity and long service life

4. High efficiency, convenient for quick clamping

5. Can be repeatedly ground, reducing the processing cost

processing case of cnc pcd inserts.png

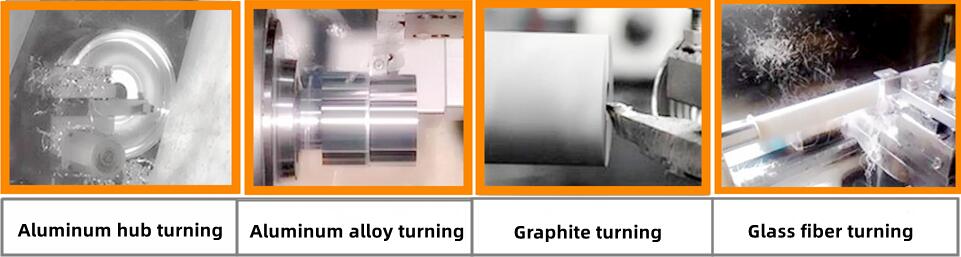

Such as Aluminum hub turning,Aluminum alloy turning,Graphite turning,Glass fiber turning.

PCD Inserts turning.jpg

Some Types PCD Inserts as follows,

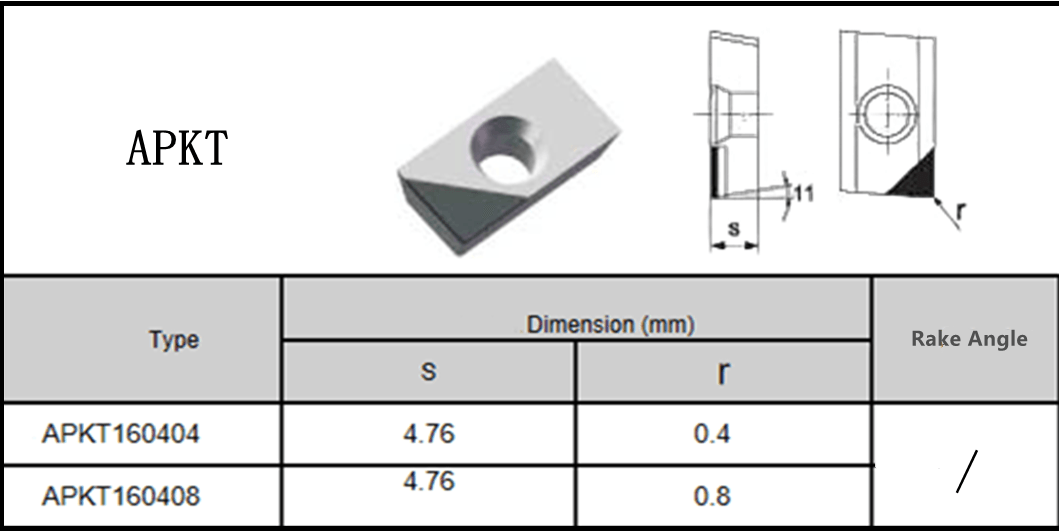

APKT TYPE PCD INSERTS

ZY APKT PCD INSERT.png

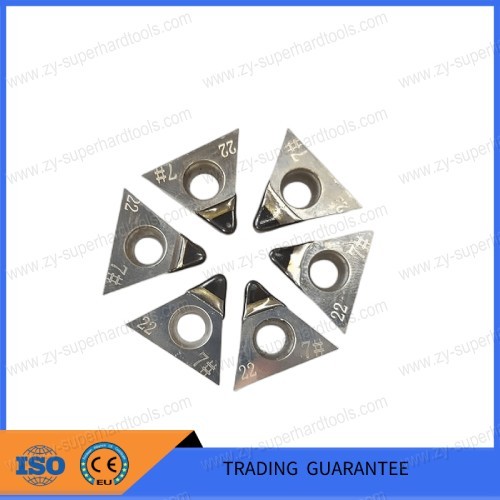

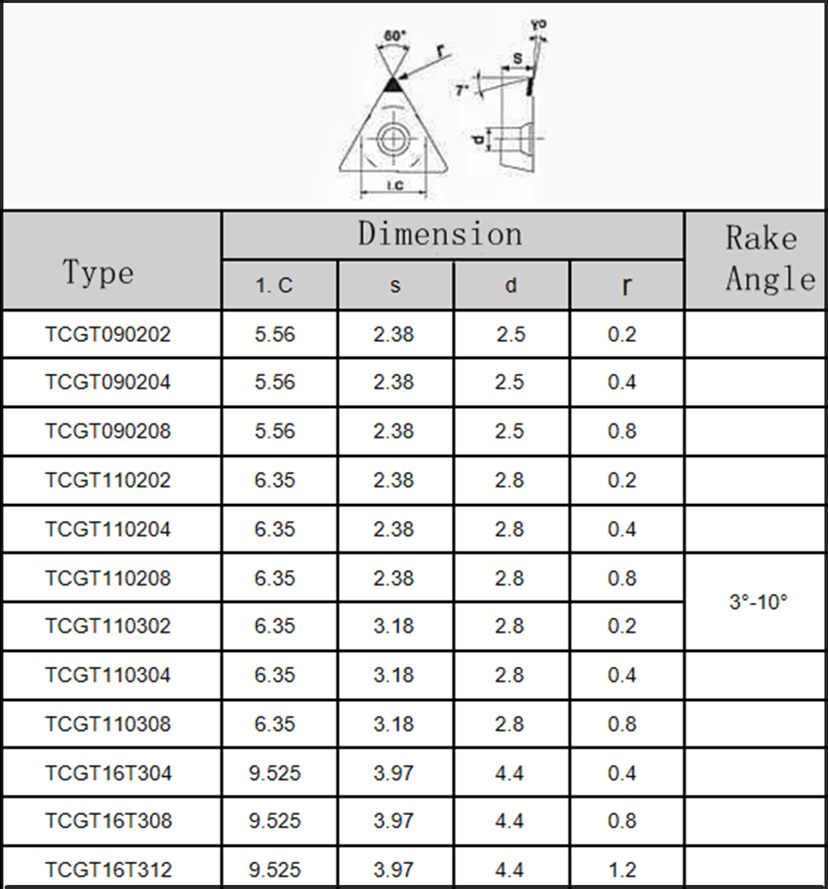

TCGT TYPE PCD INSERTS

ZY TCGT PCD INSERTS.png

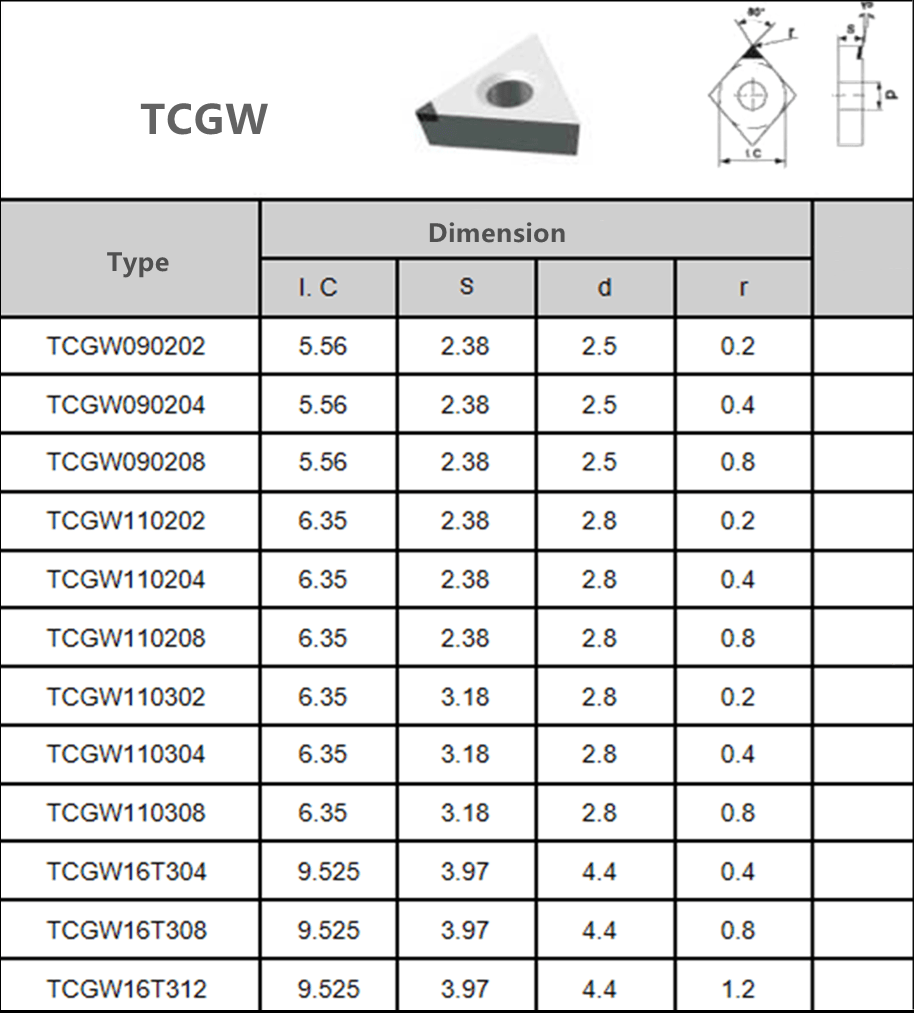

TCGW TYPE PCD INSERTS

ZY TCGW PCD INSERTS.png

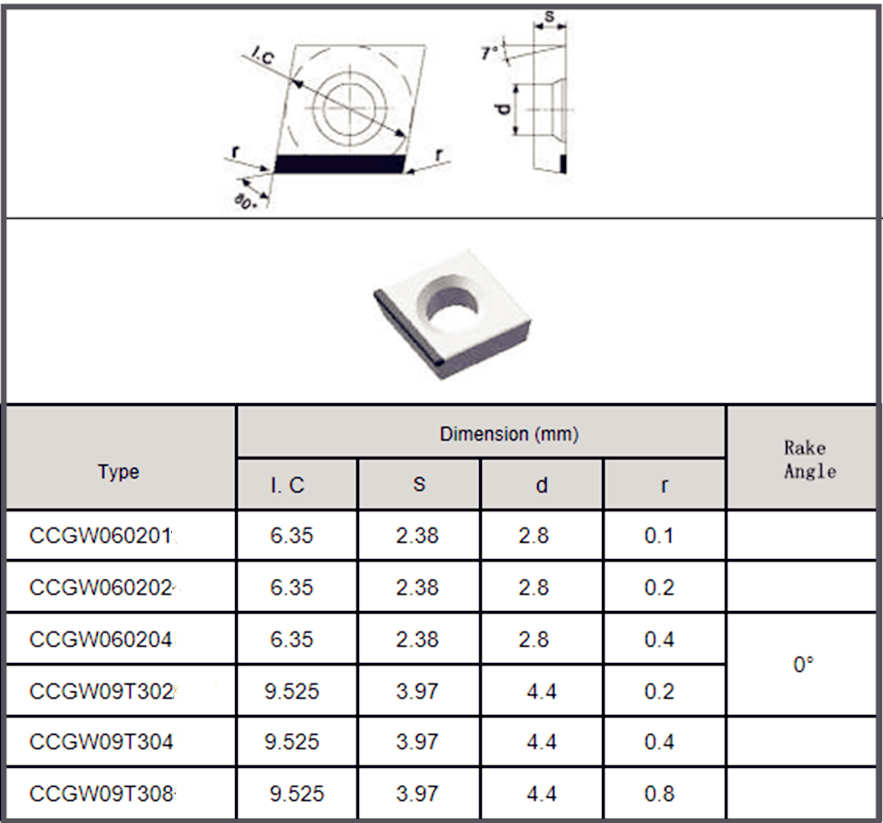

CCGW TYPE PCD INSERT

ZY CCGW PCD INSERTS.png
