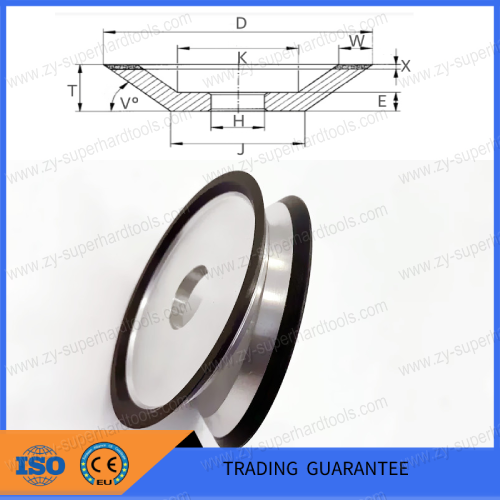

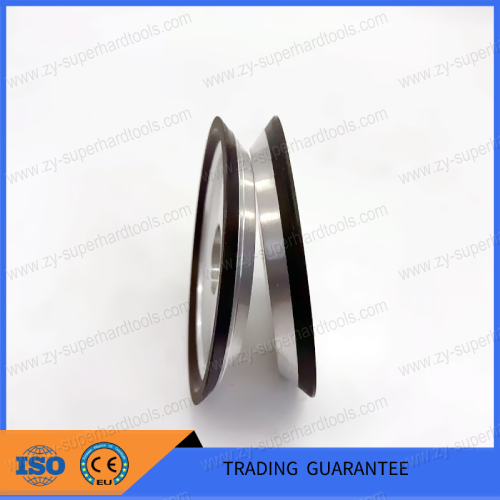

12V2 Grinding Wheel
12V2 Grinding Wheel
Resin Bond Diamond/CBN grinding wheels have the featured of good self-sharpening, sharp cutting, high efficiency, low roughness of work piece surface, few heat generating and no burning.
Applications:Often used for face grinding,hob grinding,tool and cutter grinding,widely applied in sharpening and finishing of front surface of reamer teeth, hobbing cutters, circular saws, drawing dies and tools made of hard alloys.

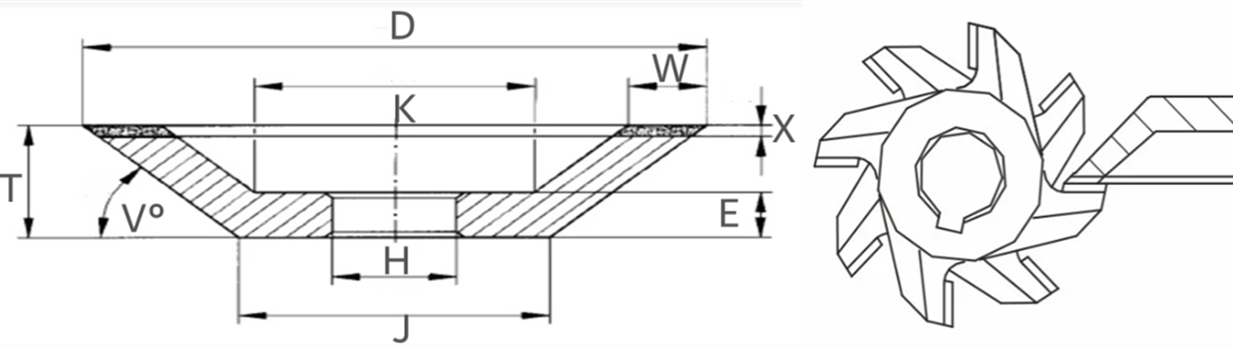

Drawing of 12V2 Grinding Wheel
Specification of 12V2 Grinding Wheel with resin bond diamond or cbn (Unit:mm)
| D | T | W | X | V | H | K | E | J |
| 75 | 25 | 5 | 2,3,4 | 45° | As specified | 30-85 | 10 | 45-110 |
| 100 | 5 | 10 | ||||||
| 100 | 7 | 10 | ||||||
| 100 | 10 | 10 | ||||||
| 125 | 5 | 10 | ||||||
| 125 | 8 | 10 | ||||||
| 125 | 10 | 10 | ||||||
| 150 | 6 | 12 | ||||||
| 150 | 10 | 12 | ||||||
| 150 | 12 | 12 |
Other Type Drawing:
