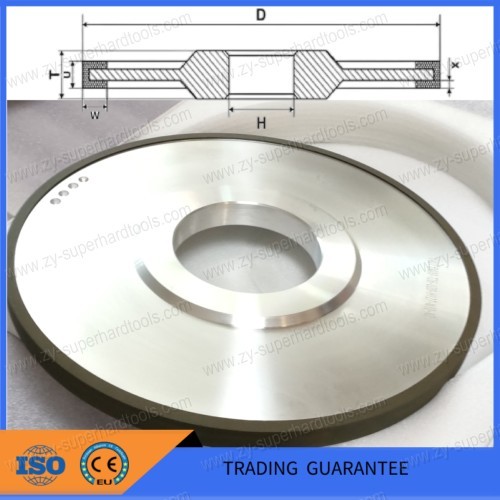

14U1 Diamond CBN Grinding Wheels

14U1 Diamond CBN Grinding Wheels

It is intended for grinding grooves in carbide parts, high-speed alloyed high-strength steels and other difficult materials.

It is used for contour grinding and capable to use on stationary CNC and conventional grinding machines.

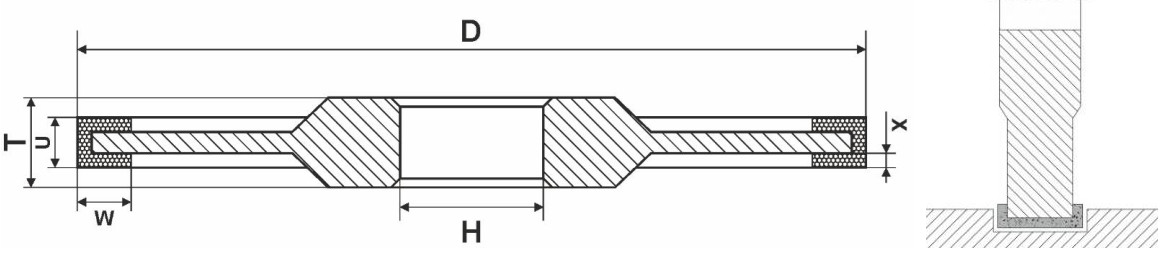

Dimention Example As Follows,

D125-T10-U6-W4-X2-H32 , D125-T10-U8-W4-X2-H32 , D150-T12-U8-W4-X2-H32 , D150-T12-U10-W4-X2-H32 ,

D125-T12-U10-W6-X2-H32 , D200-T16-U12-W6-X3-H32 , D200-T16-U14-W6-X3-H32 , D200-T16-U12-W10-X3-H32 ,

D250-T20-U16-W12-X3-H76 , D250-T20-U16-W8-X5-H76 ,D250-T20-U16-W10-X3-H762 , D250-T20-U16-W10-X5-H76 ,

Order Example
