MCD diamond chamfering tools

MCD single crystal diamond chamfering tools mainly are used for side milling, vertical milling, mirror cutting processing, and finally achieve the mirror effect.

Concentricity: 5μm

Processing precision of mirror: Ra0.1

Tool runout: 3μm

Back Angle of cutting edge: 3-12°

Tool tolerance: ±0.001mm

Cutting depth: less than 0.1mm

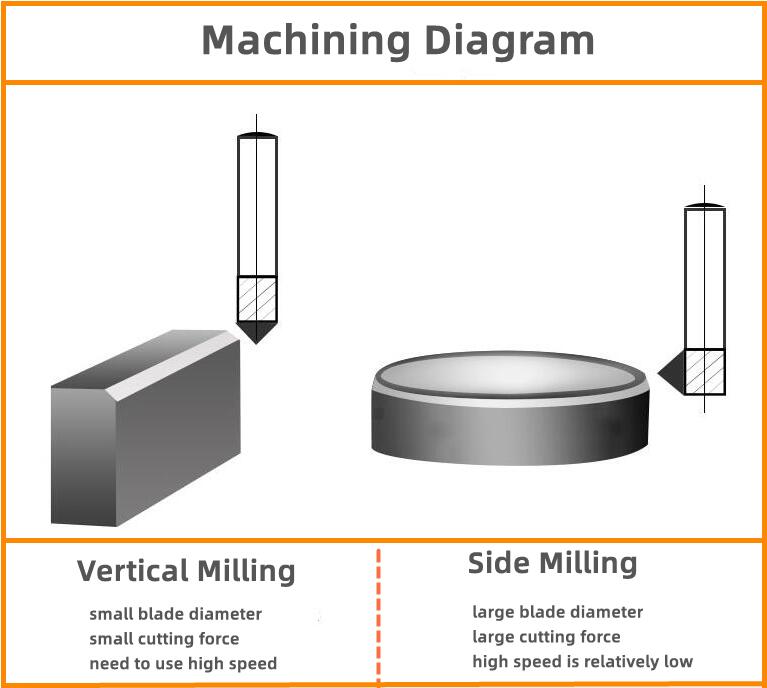

Vertical milling:

small blade diameter

small cutting force

need to use high speed

Side milling:

large blade diameter

large cutting force

high spped is relatively low

In order to improve the surface finish of the workpiece, please pay attention to the following aspects:

1. Select machine tools with high precision and small vibration

2. Adopt high speed, low feed, small cutting depth

3. Spare a little less, the cutting amount is controlled below 0.1mm, select the suitable special coolant

4. If the blade is not sharp, it should be re-grinding and polishing

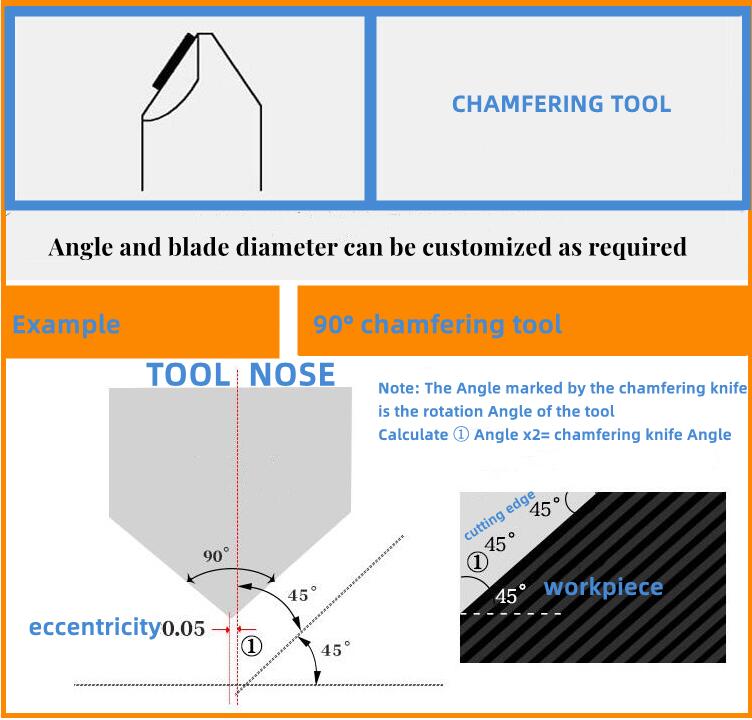

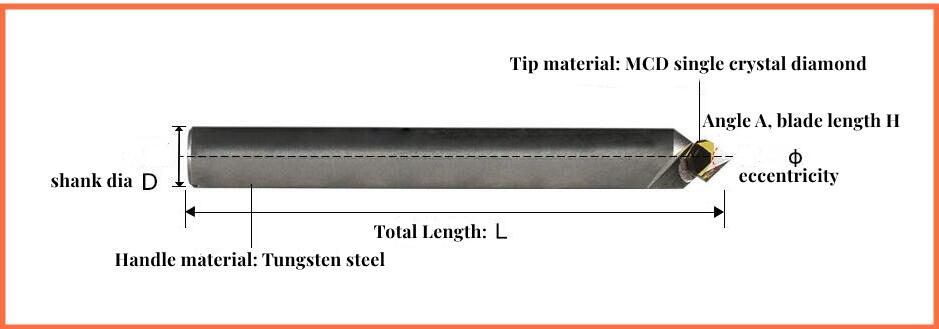

Eccentricity  (rotating diameter), including Angle, blade length, handle diameter, total length, diamond material type can be customized according to demand.
